Crytec l CRR3000 l Ride On Diesel 3 Tonne Twin Roller l Engine l 39HP l 3 Tonne Hydraulic Tandem

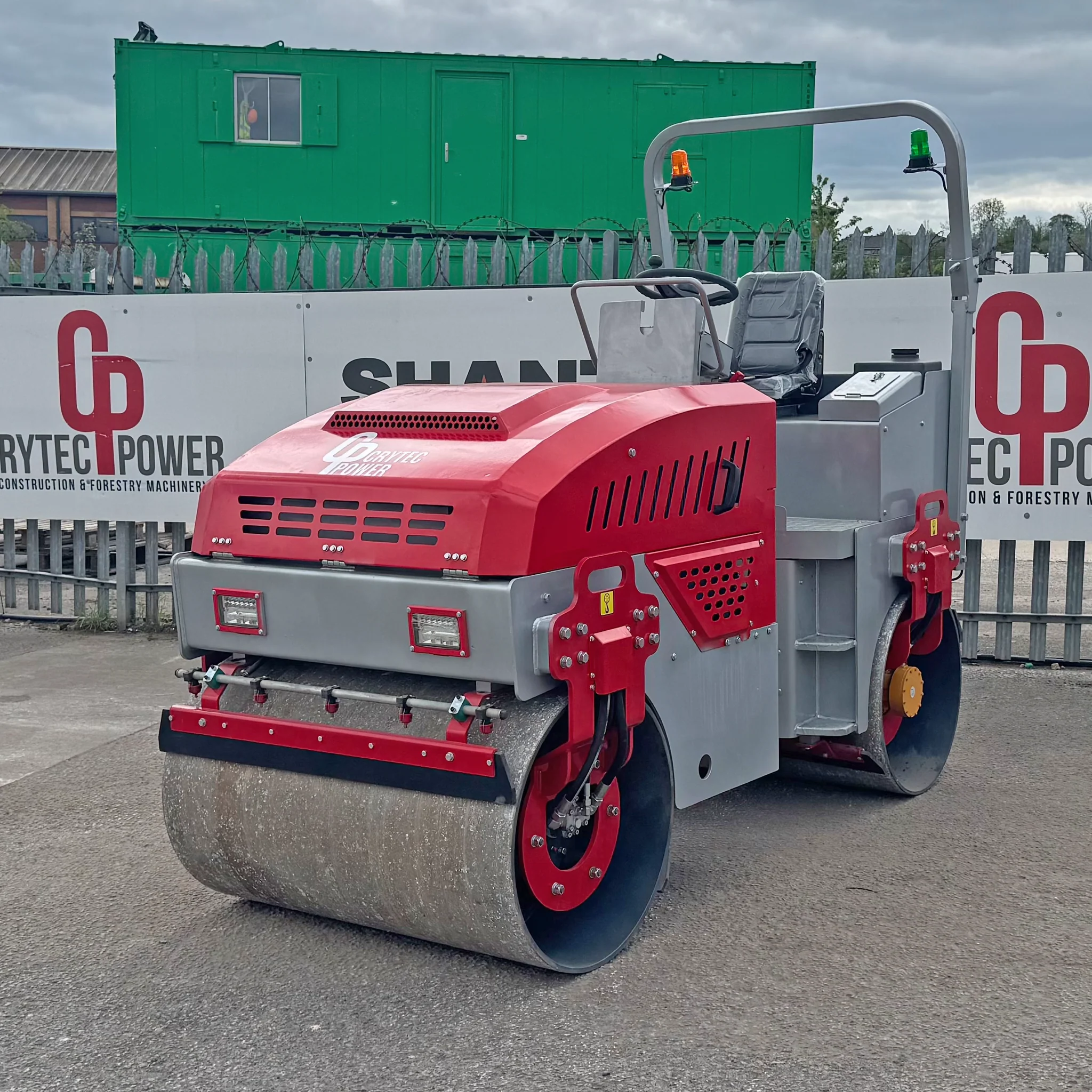

3-Ton Full Hydraulic Tandem Roller
Designed for performance, durability, and ease of operation, this 3-ton full hydraulic tandem roller is a versatile solution for a wide range of compaction applications. Ideal for road construction, maintenance work, landscaping, and small to medium-scale infrastructure projects, it delivers consistent, high-quality results across asphalt and soil surfaces.
Powered by a reliable diesel engine and equipped with a fully hydraulic transmission system, this machine ensures smooth operation, strong traction, and efficient power delivery. The advanced hydraulic drive system provides seamless speed control, while the articulated steering design offers excellent maneuverability—even in confined spaces.

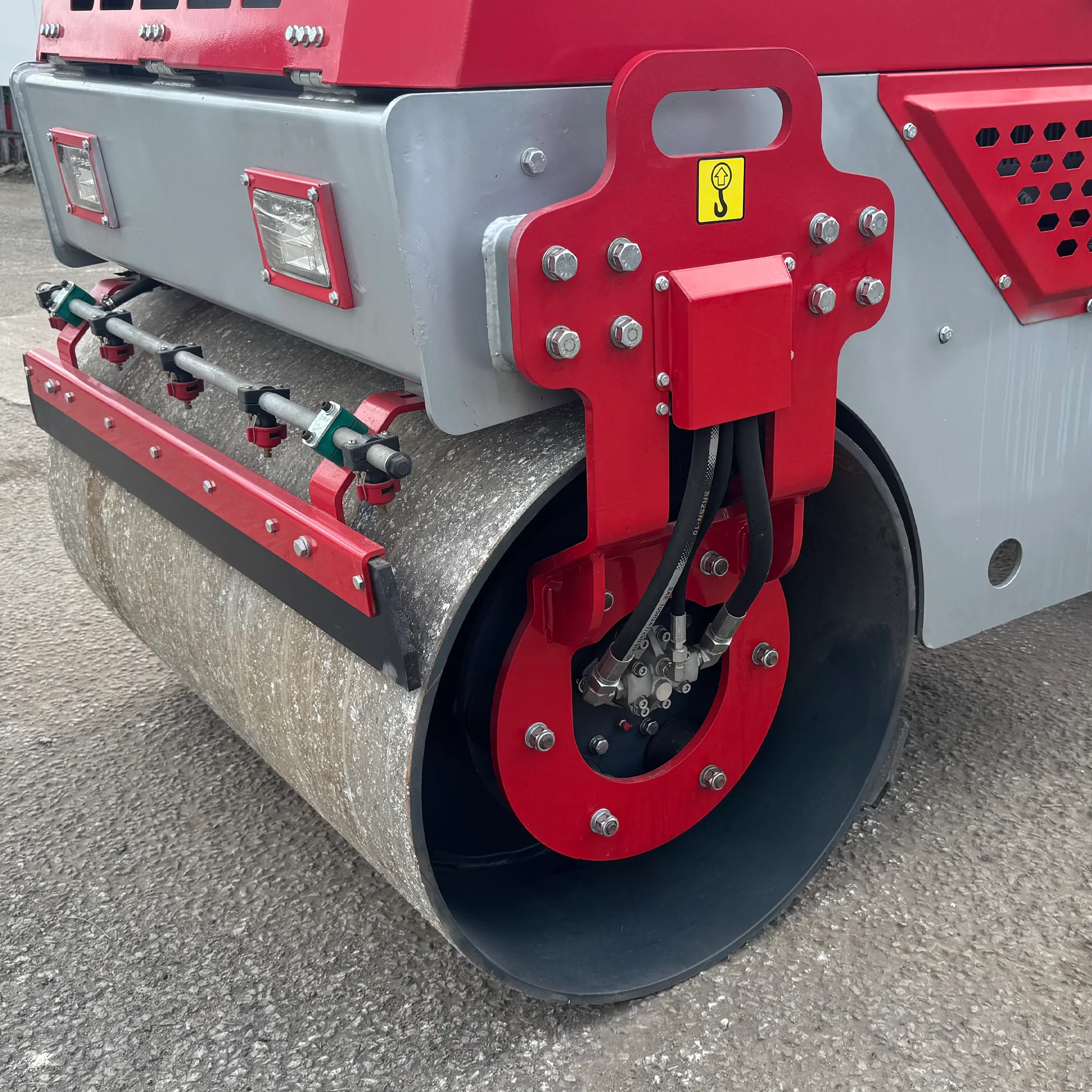

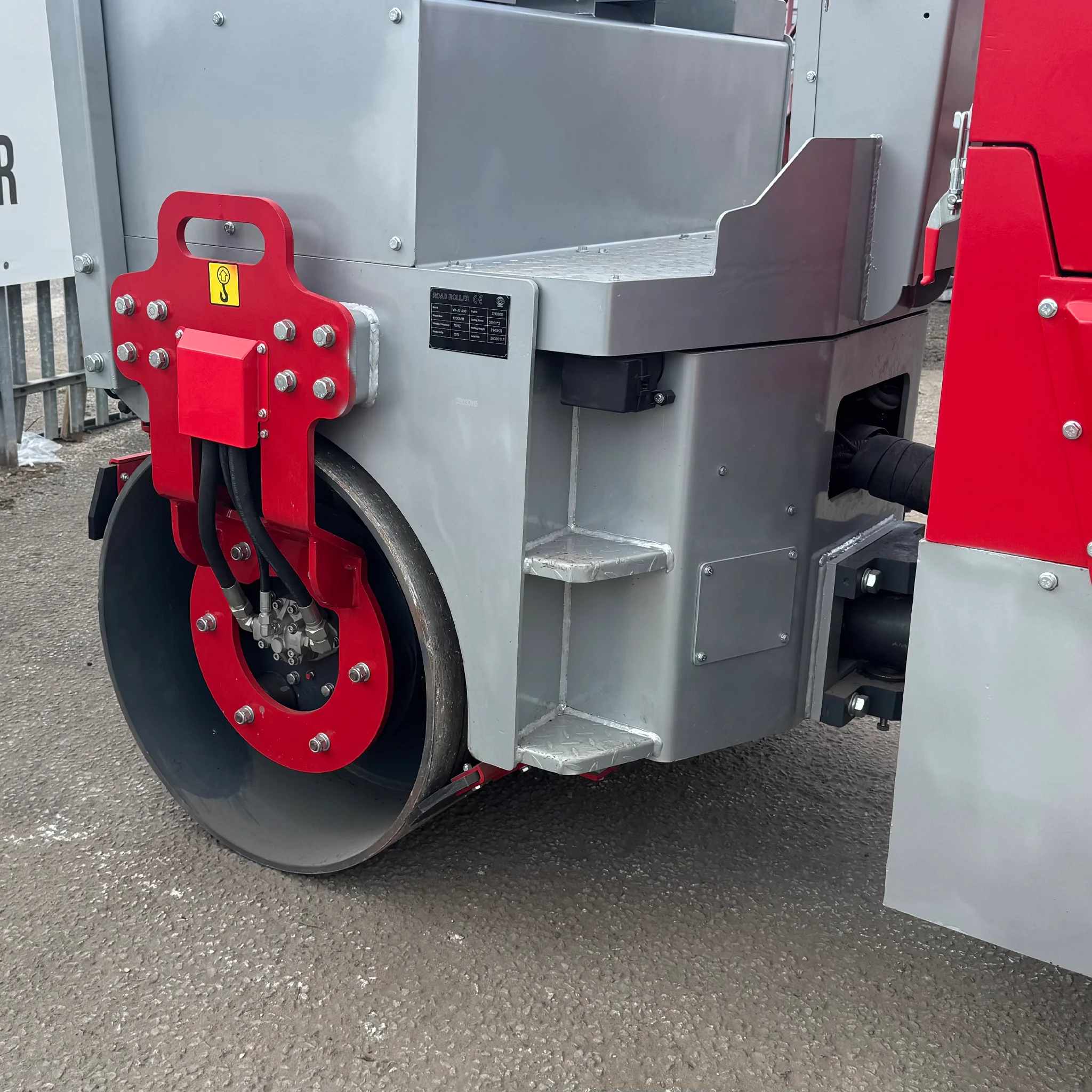

The roller features dual vibrating drums with independent vibration control, allowing operators to tailor compaction performance to different materials and job requirements. Both front and rear drums can vibrate simultaneously or separately, ensuring uniform compaction and improved surface finish.
Engineered for stability and safety, the machine incorporates a low center of gravity and balanced weight distribution to enhance climbing ability and reduce the risk of tipping. High-performance bearings and robust structural components contribute to long-term reliability and reduced maintenance requirements.

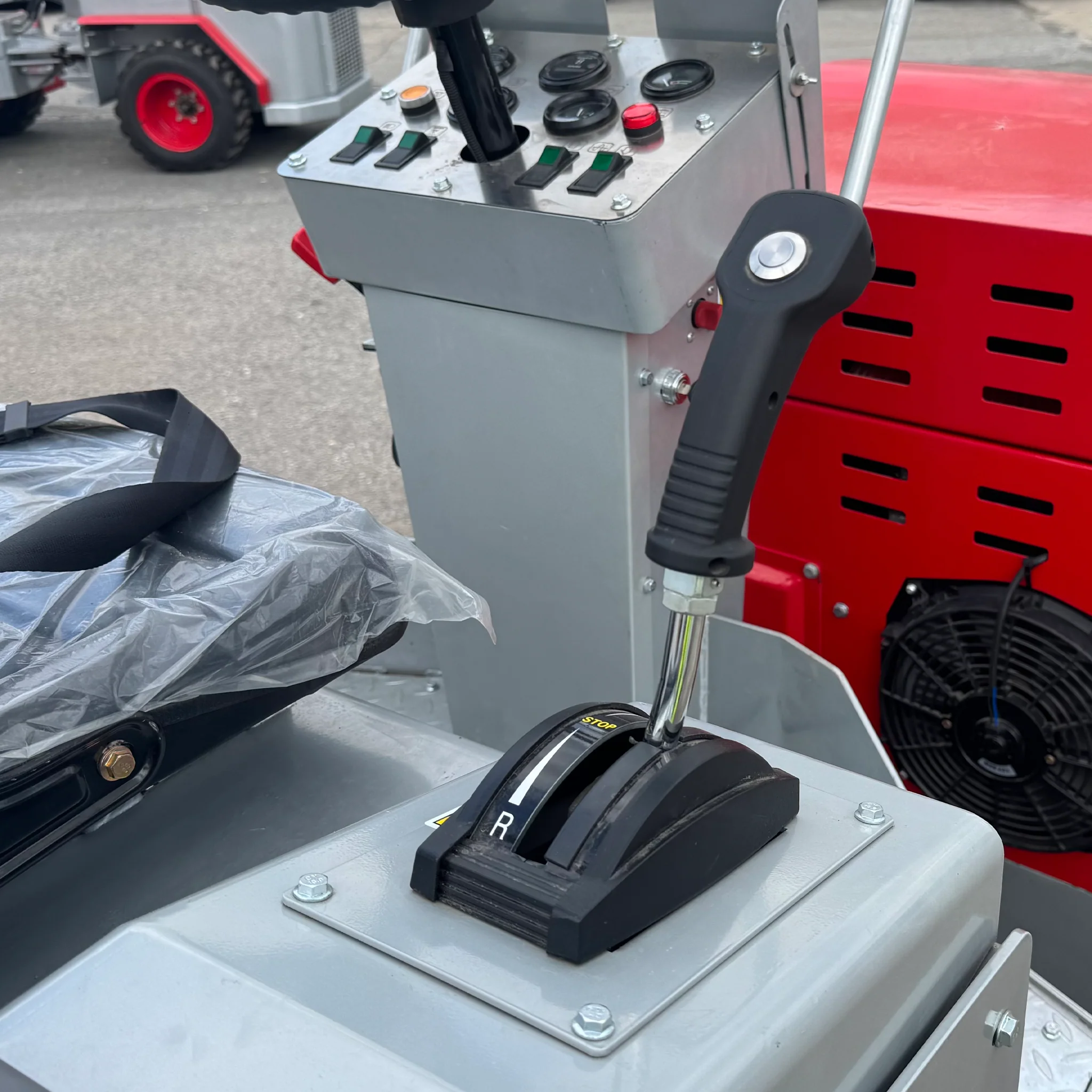

Operator comfort and productivity are enhanced through intuitive controls, responsive handling, and efficient water spray and lighting systems. The pressurized water spray system ensures even distribution to prevent material adhesion, while integrated front and rear lighting supports safe operation in low-light conditions.
Specifications
- Operating Weight: 3,140 kg
- Drum Width (Front/Rear): 1,200 mm
- Drum Diameter (Front/Rear): 710 mm
- Overall Length: 2,700 mm
- Overall Width: 1,320 mm
- Overall Height: 1,900 mm
- Travel Speed: 0–12 km/h
- Turning Radius: 3,000 mm
- Gradeability: 30%
- Vibration Frequency: 75 Hz
- Nominal Amplitude: 0.5 mm
- Excitation Force: 35 kN × 2
- Drive System: Full hydraulic, dual drum drive
- Vibration System: Hydraulic vibration (front and rear drums)
- Steering: Hydraulic articulated steering
- Engine Type: Vertical, water-cooled diesel
- Power Output: 39 HP @ 2,600 rpm
- Emissions Standard: EU Stage III compliant
- Fuel Tank Capacity: 38 L
- Fuel Consumption: 240 g/kW·h
- Water Spray System: Electrically controlled pressurized spray
